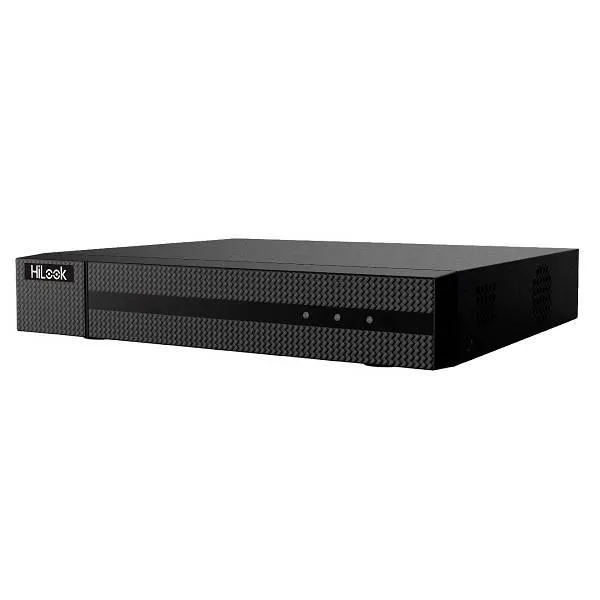

HiLook 4 Channel Network Video Recorder can support up to 4 IP cameras, with plug and play technology, Power over ethernet, supports multiple video formats, includes one bay for hard disk drive, no hard drive included.

Model: NVR-104MH-C/4P

PRICE EXCLUDES HARD DISK DRIVE, SOLD SEPERATELY

Network Video Recorder Features

• Up to 4-ch IP camera inputs
• H.265 /H.265/H.264 /H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 40 Mbps incoming bandwidth

• IP Video Input4-ch
• HDMI OutputHDMI:,4K (3840 2160)/30Hz, 1920 1080/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz,VGA: ,1920 1080/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz,
• VGA Input1920*1080/60Hz1280*1024/60Hz1280*720/60Hz
• Incoming Bandwidth40 Mbps
• Outgoing Bandwidth80Mbps
• Audio Output1-ch, RCA (Linear, 1 K)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1k)
• Decoding
• Decoding FormatH.265 ,H.265,H.264 ,H.264,MPEG4
• Decoding Capability1-ch @ 8 MP / 4-ch @ 1080p
• Synchronous Playback4-ch
• Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• PoE
• Interface4-ch
• Power 50 W
• StandardIEEE 802.3 af/at
• RAID
• RAID TypeNo
• Auxiliary Interface
• SATA1
• CapacityUp to 8TB capacity for each disk
• USB Interface2 USB 2.0
• General
• Power Supply48 VDC, 1.35 A
• Consumption 10 W (without enabling PoE)
• Working Temperature-10 to 55 C (14 to 131 F)
• Working Humidity10 to 90 %
• Chassis1U
• Dimension (W D H)265 225 48 mm (10.2" 8.9" 1.9")
• Weight 1 kg (2.2 lb)
